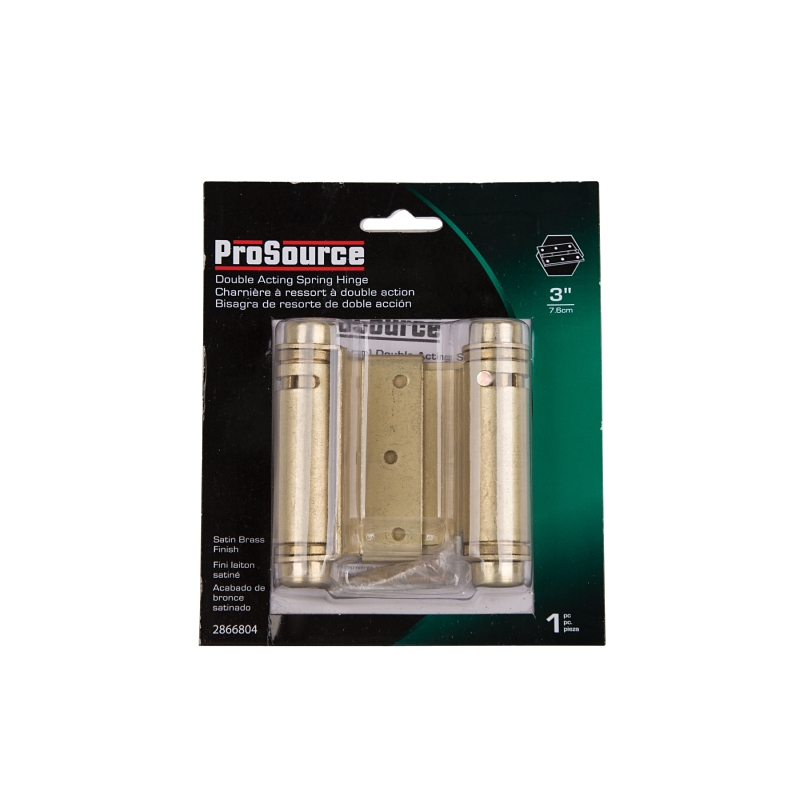

ProSource LR-024-LPS Spring Hinge, Steel, Satin Brass, Tension Pin, 180 deg Range of Motion, Screw Mounting, 12 lb
- Color: Satin Brass
- Dimensions: 3 in L x 1 in W
- Door Leaf Height: 50 in
- Door Leaf Thickness: 3/8 to 1-3/8 in
- Door Leaf Width: 24 in
- Model #: LR-024-LPS
- UPC #: 045734647176
- SKU: 2866804
Your shopping list will be used for pickup in-store
Product Details
The ProSource spring hinge allows doors to swing in both directions. They are fully adjustable. An adjusting rod, stop pin, screws and instruction manual are included.Key Features
- Satin brass finish steel
- For doors 3/8 in (9 mm) to 1-3/8 in (35 cm) thick
Item Specifications
| Color | Satin Brass |
|---|---|
| Dimensions | 3 in L x 1 in W |
| Door Leaf Height | 50 in |
| Door Leaf Thickness | 3/8 to 1-3/8 in |
| Door Leaf Width | 24 in |
| Finish | Satin Brass |
| Hole Spacing | 1 in |
| Includes | Adjusting Rod Screw Stop Pin |
| Material | Steel |
|---|---|
| Mounting Hole Diameter | 4.7 mm |
| Mounting Type | Screw |
| Number of Mounting Holes | 6 |
| Pin Type | Tension |
| Range of Motion | 180 deg |
| Suitable for | Wooden Screen Door |
| Weight Capacity | 12 lb |
